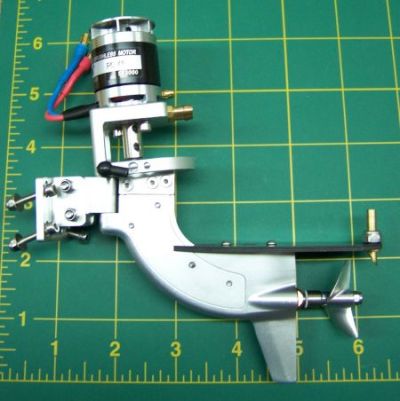

Mini OutBoard Motor.
This is a complete outboard unit with mounting brackets and 3000kv outrunner motor for 2s Lipo applications. It can be used with 3s lipo power with a light weight hull in the sub 1 pound range. The propeller in this outboard is CNC Aluminum and driven by a flex shaft, making it smooth and efficient. The all aluminum lower unit makes for a strong, yet light weight
This outboard will require an esc, we suggest the OSE Raider 90 esc. You will have to buy and solder 3.5mm connectors onto the esc to mate them together.
Specifications:
Brushless Outrunner Motor 3000kv with male 3.5mm male bullet connectors.
32mm Diameter CNC aluminum prop.
1/8" (3.175mm) propeller shaft.
Will fit upto a 36mm diameter propeller.
Carbon Fiber trim plate.
Water pickup with included water cooled motor mounting plate.
Weighs less than 7 ounces.
This will fit 1 pound boat hulls in the 22" (550mm) to 25" (620mm) Range. If you have any setup questions please email before purchase.
Requires:
7/32" water tubing.
Female 3.5mm bullet connectors pn# hh-gpmm3113
2x Linkage rod fittings pn# ose-83119
