Low profile strut 110mm long

The adjustable strut.  Aluminum, CNC cut for square drive flex cable. This can also be used with a standard 1 piece flex cable by removing the prop shaft and using a one-piece cable, for example, ose-cable-1190.

Works well on catamarans with transom overhang.

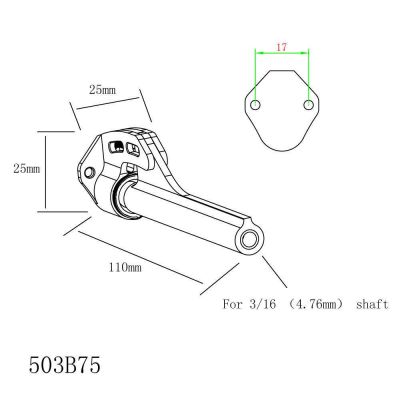

Measurements, see pictures 4 and 5.
110mm (4.3") in length.
26mm tall x 24mm wide.

Lead teflon bushing for 3/16" (.187", 4.75mm) propeller shaft.

Includes:
(1) Strut
(1) Prop shaft
(1) Bullet Nut, 10mm diameter pn# tfl-518B61
(1) Drive Dog, 10mm diameter pn# ose-80246

Requires:
Square drive Cable pn# Oct-oc6sql-24a
Stuffing tube 1/4"
Or the alternate cable would be pn# ose-cable-1190 for a one-piece cable system.
