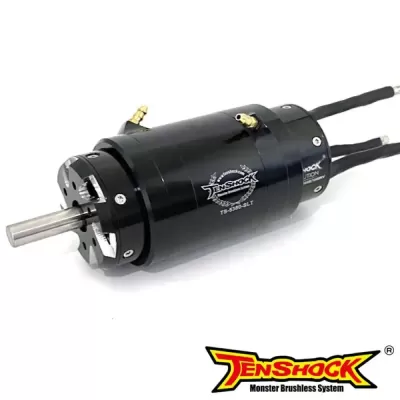

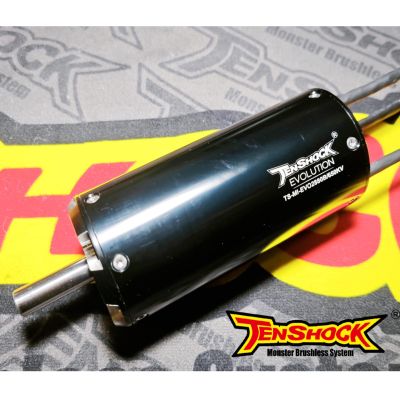

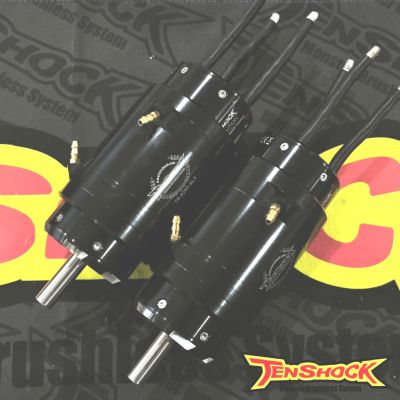

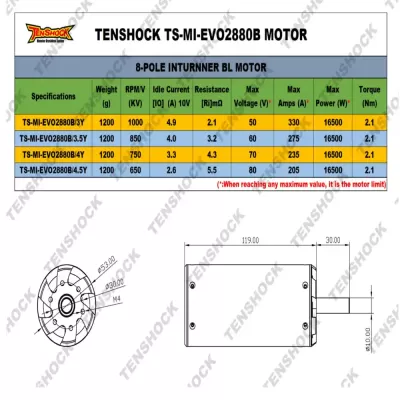

Evo TS-MI-EVO2880 : 53x119mm: 8 Pole Motor.Combine this motor with a Castle HV ESC to save $86.00!! $699 for the motor and ESC. Normally $786.99-See picture 3 for motor chart1. Powerful 8-pole core design for high torque output.2. Advanced assembly technology enables more efficient space utilization.3. CNC-machined aluminum casing4. Silver and copper wire alloy for super high efficiency over a basic copper alloy wire. 5. Powerful sintered neodymium magnets6. High torque-to-weight ratio.7. The hand-wound weaving of the winding ensures the motor has excellent electrical characteristics! 8. Includes a free water jacket with an internal water channel to ensure water flows around the motor 9. High-grade bearingsSpecs:Magnets: neodymiumWatts: 16,500Poles: 8Motor Shaft: 10mmShaft Length: 30mmCan Measures: 53mm diameter x 119mm longWeight: 1200 GramsMounting Screw diameter required: 4mmFront 10*22*6 : Rear 8*19*6Connectors: OSE suggests 8mm Water Jacket: 80mm in lengthOSE suggests 25,000-45,000 total rpm. These are only guidelines; if you don't know how to pick the right motor, please consult OSE first or other members of the RC Fast electric boating community, either at a local club or on our OSE Forums. * It is important to note that the "Max Amps" value represents the maximum recommended operating current for the motor. It does not indicate the maximum current the motor can draw. For instance, the 650kv motor has a "Max Amp" rating of 205. This means the motor should not be operated at a current exceeding 205 amps. However, this does not imply that a 200-amp ESC will be compatible with the motor. Instead, the user must select a propeller or gearing that prevents the motor from exceeding its "Max Amp" rating. It is important to note that the 205-amp motor can exceed the 205-amp limit for a short period when pushed beyond its limits.
