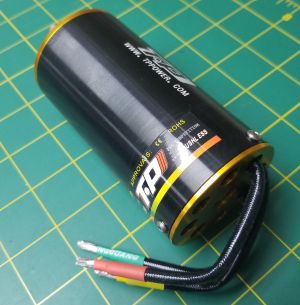

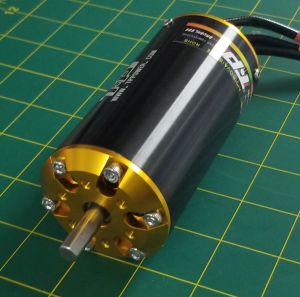

TP Power Brushless 5680 V1 Motor
56mm Diameter by 116mm Long Brushless Motor. Hand wound for high efficiency of up to 90%. Comes with high quality bearings and neodymium magnets for high power. Large vented front and rear endbells for additional heat dissipation.
Special while supplies last! FREE TP-cj56L Jacket (56mmx62mm long) Water Jacket with TP Motor Purchase, $17.95 Value!
V1 Motors are a three piece can design with gold anodized, front and back end plates screwed on.
We offer this in 4 versions. See below for options.
Watts continuous: 7,200
Watts max: 15,000
Motor Shaft: 8mm with flat spot
Can Measures: 56mm diameter x 116mm long
Approx weight (varies with wind choice): 1050gr
Mounting screw diameter required: 4mm
Bullet connectors. We suggest the OSE 8.0 Bullets.
OSE Suggests 20,000-35,000 total rpm for boats. We suggest most Fast Electric Boaters should run in the 25,000RPM range for Sport Boating or 30,000RPM Range for racing. These are only guidelines, we suggest if you do not have the knowledge to pick the correct motor, please consult us first or other members of the rc fast electric boating community. Either at a local club or on our OSE Forums.
